My Kicad Board Setup Settings
Published Dec 2023 · 1 min read
KiCad Board Setup PCB

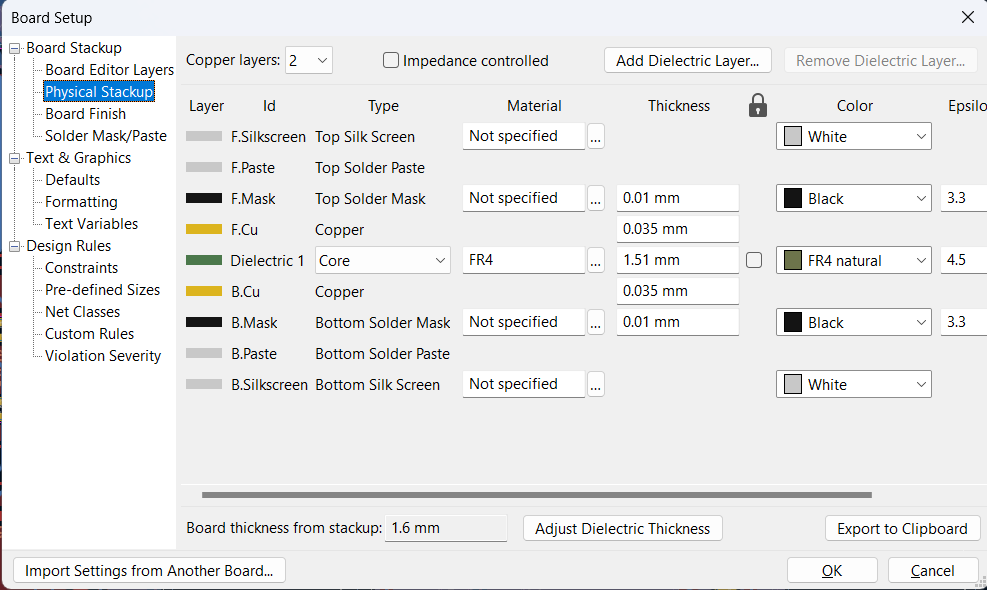

Board Stackup - Physical stackup

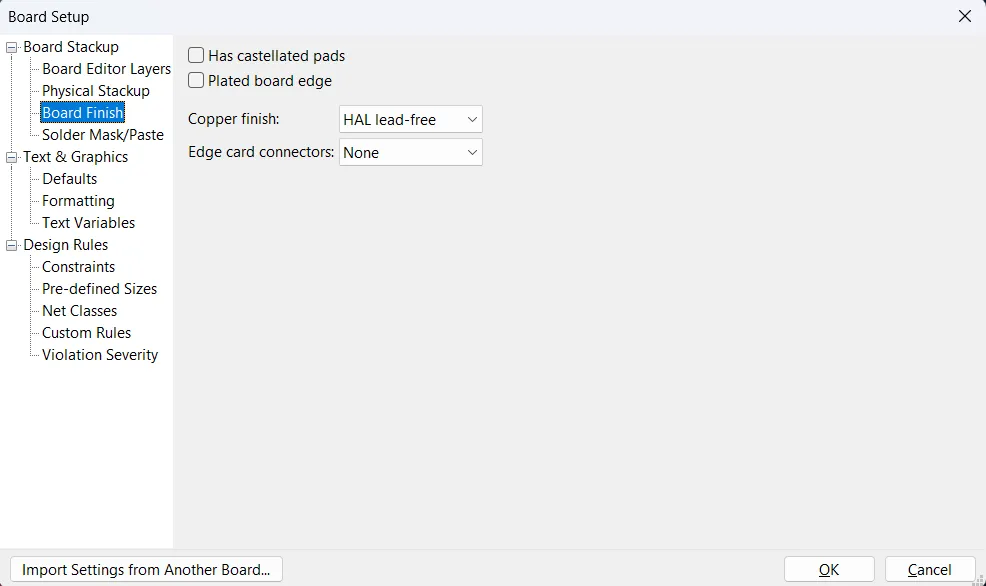

Board Stackup - Board Finish

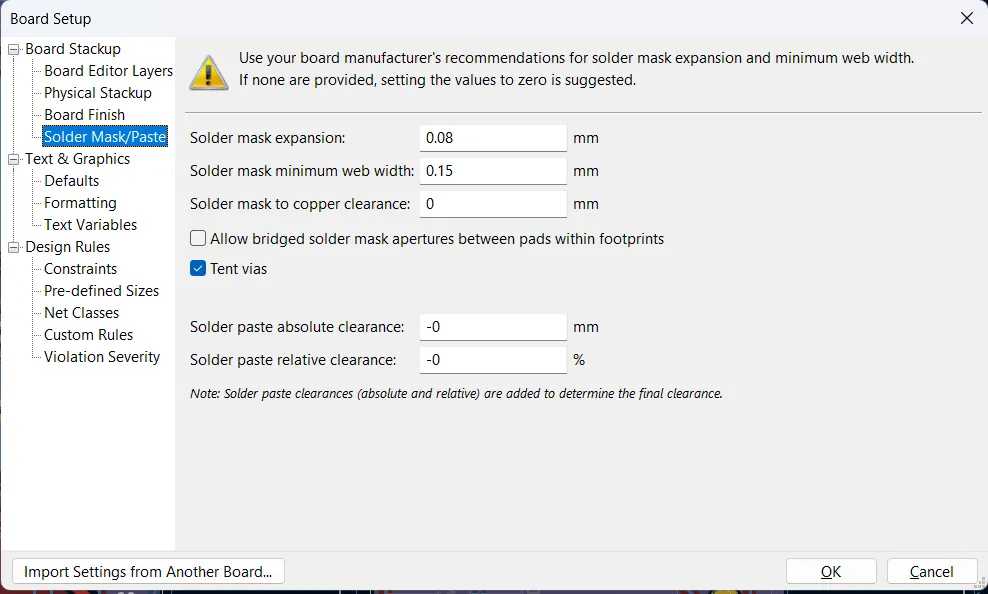

Board Stackup - Solder Mask/Paste
Text & Graphics - Defaults

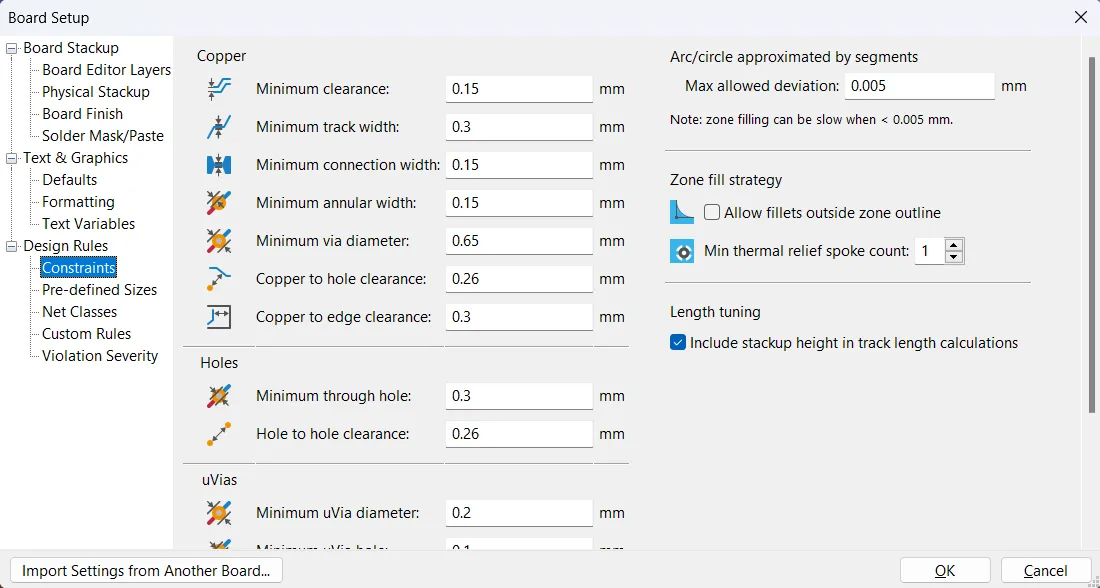

Design Rules - Constraints

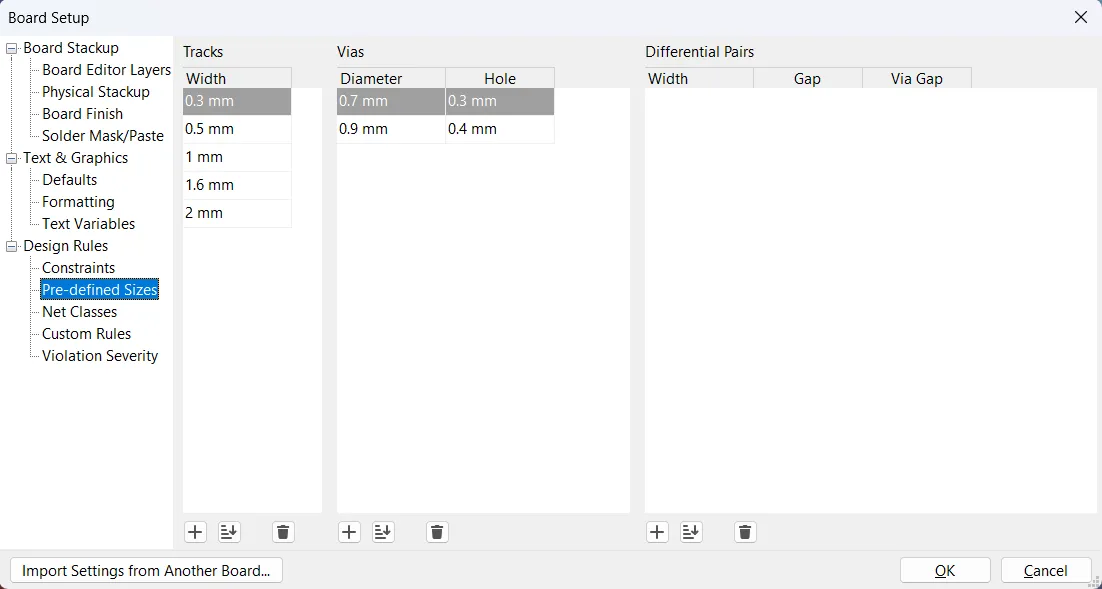

Design Rules - Pre-defined Sizes
