Powering Your Module
Published Dec 2023 · 1 min read

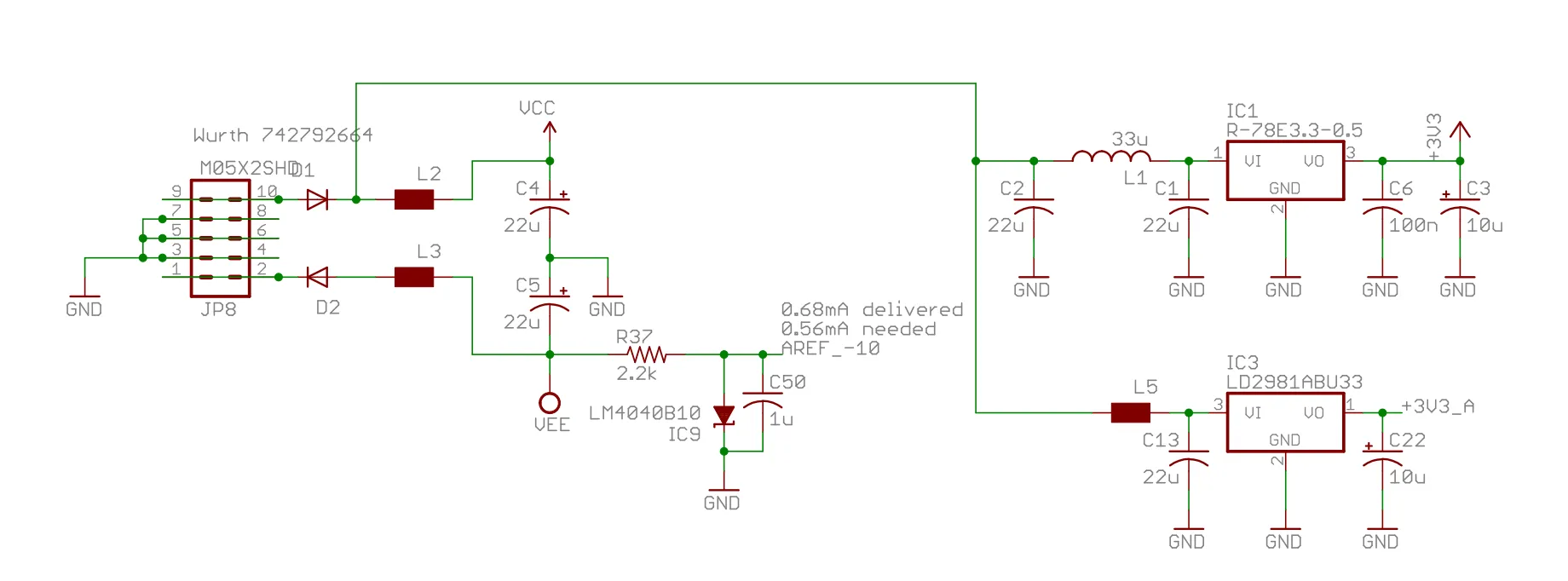

The basic components of a power input circuit in a module
The circuit above is from a Mutable Instruments module.
- IDC input
- Reverse polarity protection
- Filter caps

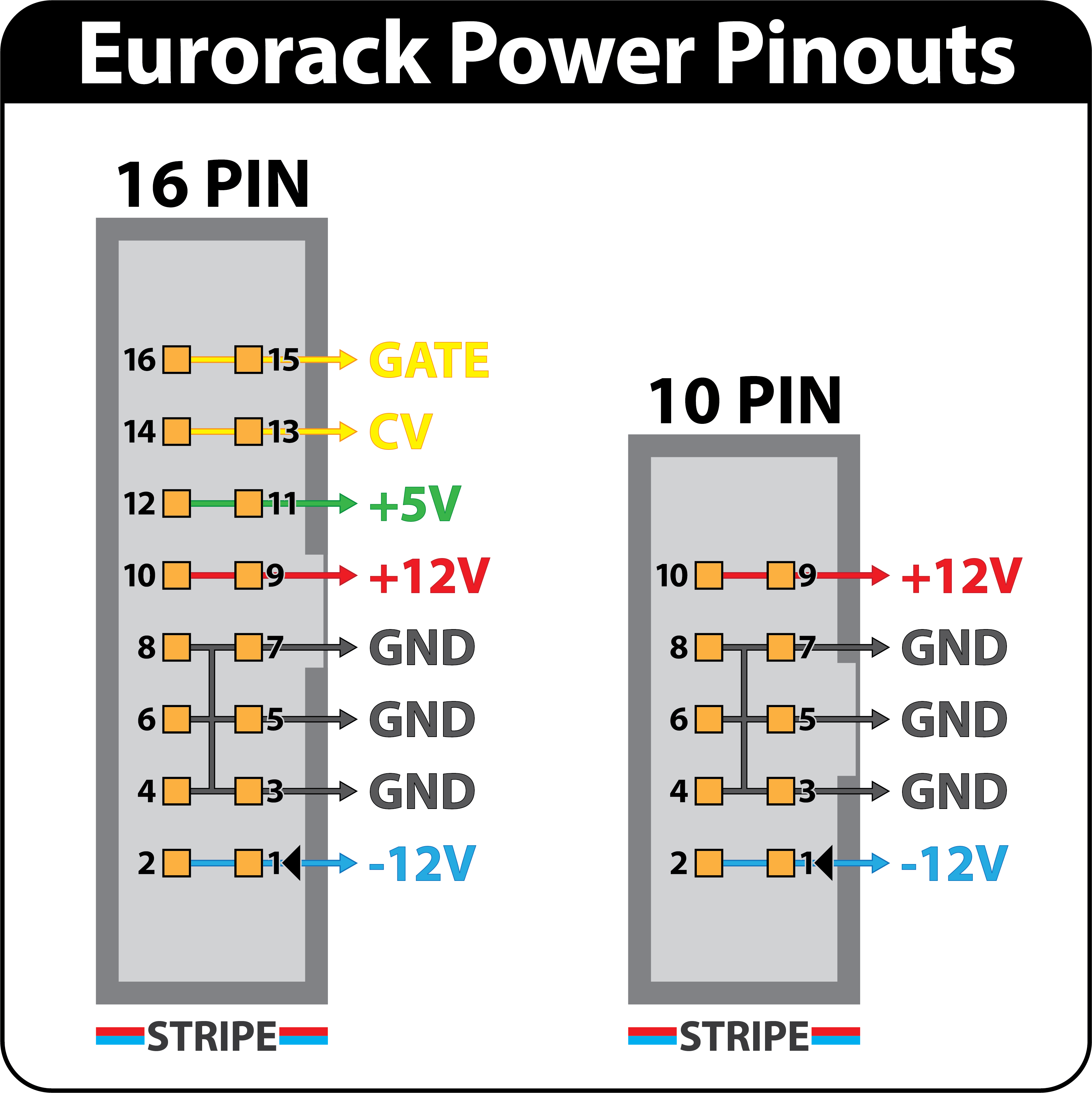

The Eurorack standard power connector
